SAML 2.0 SSO Integration

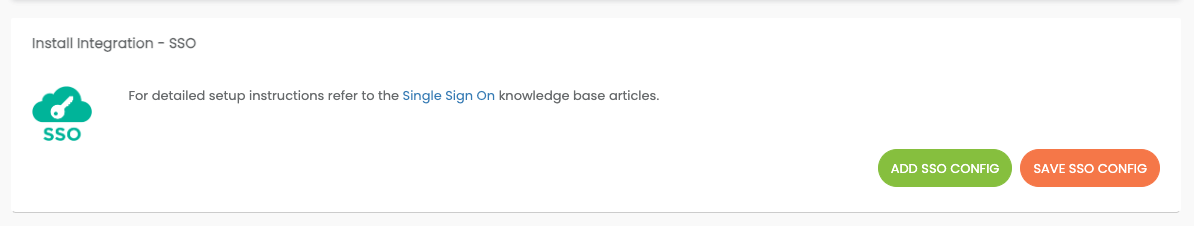

In a new tab or window log into your StatusCast admin portal. Navigate to the Integrations section by clicking Settings > Integrations. Under the SSO card select the Install option. (https://[yourapp].status.page/admin/integrations/sso)

To complete the integration select the role you want to assign users first. You can assign user roles to allow permissions to view or access specific component data. You should go through this process for each role you will be using SAML for authentication in Statuscast.

Select your user role
Use the Type dropdown menu to choose SAML 2.0 as the SSO provider

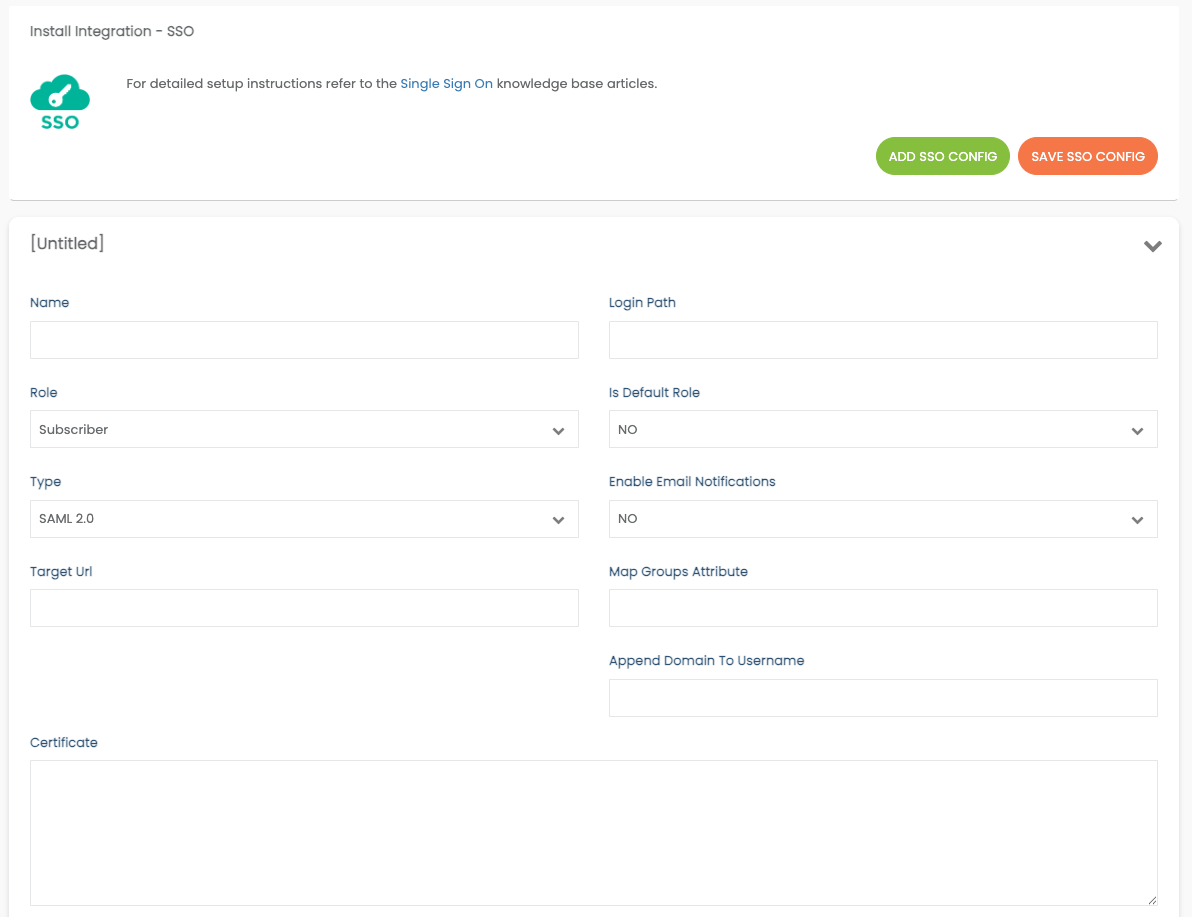

Fill in the details for the integration. See the chart below for details
Be sure to Save your configuration using the orange button at the top when completed.
Continue adding additional Configurations as needed

Label	Description
Name	Give this set-up a name so you can distinguish it if you need to make a change
Login Path	All SSO logins use your page url /login/[myloginpath]. This value is the part or your URL after the /login/ . This is the endpoint for the users allowing them to login using this SSO integration. You can call it anything that makes sense for you. Ex: https://mypage.status.page/login/subscribers1
Role	Select the Role of the users for this integration. See Roles for more information.
Is Default Role	If the default is not set, the first integration for the role will be chosen if the user is using our former standard role-based SSO paths like: /login/employee...
Type	Select the SSO type from the dropdown. Use SAML 2.0 if the type is not defined in the dropdown
Enable Email Notifications	Automatically sign up a Subscriber or Employee for Email notifications

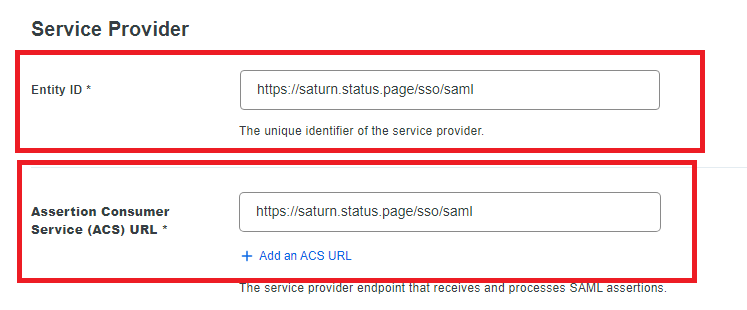

Target URL	Enter the SSO Target URL unique the Duo App which you can find in the setup instructions labeled as your Identity Provider Single Sign-On URL.
Map Groups Attribute	Optionally, you can add a Group Attribute. See Groups Attribute
Append Domain Name to User Name	If your SSO doesn't send the username over as an email address @somewhere.com will need to be appended to the username to work with our system. Add the domain here.
Certificate	Paste a copy of your X.509 Certificate

Signing In

Now your integration is complete and the users you granted access to can sign into StatusCast using their SSO credentials.

Commonly used URL paths for each of the roles are listed below, but you can now choose these in the integration settings. Be sure to send your users to the appropriate path.

Subscriber > https://[yourapp].status.page/login
Employee > https://[yourapp].status.page/login/employee Manager > https://[yourapp].status.page/login/manager Administrator > https://[yourapp].status.page/login/admin Company Administrator > https://[yourapp].status.page/login/companyadmin
